HOME > PRODUCTS CENTER > GOST 12821-80 WELDING NECK FLANGE / ГОСТ 12821-80 WELDING NECK FLANGE
GOST 12821-80 WELD NECK FLANGE PN1.0MPA
Print The Page
ГОСТ 12821-80 ФЛАНЦЫ PN 1.0 MPA
WNRF, PN10
Shandong Hyupshin Flanges Co., Ltd, Steel Flanges Manufacturer, Flanges Factory, GOST 12821-80 flanges, PN1.0Mpa

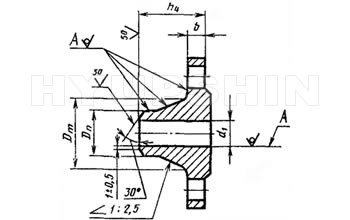

Flange Dimensions & Approximate Masses / Flange's Weight
Давление PN = 1,0 МПа (10 кгс/с м²)
Наименование
D, мм.
D1, мм.
d, мм.
Dm, мм
Dn, мм
d1, мм.
b, мм.
h4, мм.
К-во отв. n, шт.
Масса, кг
Фланец ГОСТ 12821-80 1-15-10 ст.3 (20)
95
65
14
30
19
12
10
33
4
0,58
Фланец ГОСТ 12821-80 1-20-10 ст.3 (20)
105
75
28
26
18
12
36
0,87
Фланец ГОСТ 12821-80 1-25-10 ст.3 (20)
115
85
45
33
25
38
1,05
Фланец ГОСТ 12821-80 1-32-10 ст.3 (20)
135
100
18
55
39
31
13
40
1,54
Фланец ГОСТ 12821-80 1-40-10 ст.3 (20)
145
110
62
46
38
42
1,83
Фланец ГОСТ 12821-80 1-50-10 ст.3 (20)
160
125
76
58
49
2,26
Фланец ГОСТ 12821-80 1-65-10 ст.3 (20)
180
145
94
77
66
15
45
3,17
Фланец ГОСТ 12821-80 1-80-10 ст.3 (20)
195
160
105
90
78
47
3,67
Фланец ГОСТ12821-80 1-100-10 ст.3 (20)
215
180
128
110
96
17
48
8
4,7
Фланец ГОСТ12821-80 1-125-10 ст.3 (20)
245
210
156
135
121
19
57
6,71
Фланец ГОСТ12821-80 1-150-10 ст.3 (20)
280
240
22
180
161
146
8,17
Фланец ГОСТ12821-80 1-200-10 ст.3 (20)
335
295
240
222
202
58
11,35
Фланец ГОСТ12821-80 1-250-10 ст.3 (20)
390
350
290
278
254
21
60
12
14,64
Фланец ГОСТ12821-80 1-300-10 ст.3 (20)
440
400
345
330
303
22
18,66
Фланец ГОСТ12821-80 1-350-10 ст.3 (20)
500
460
400
382
351
16
24
Фланец ГОСТ12821-80 1-400-10 ст.3 (20)
565
515
26
445
432
398
30
Фланец ГОСТ12821-80 1-500-10 ст.3 (20)
670
620
550
535
501
24
65
20
39,2
Фланец ГОСТ12821-80 1-600-10 ст.3 (20)
780
725
30
650
636
602
48,8
Фланец ГОСТ12821-80 1-800-10 ст.3 (20)
1010
950
33
850
826
792
27
75
24
87,24
Фланец ГОСТ12821-80 1-1000-10 ст.3 (20)
1220
1160
1050
1028
992
29
80
28
119,19
Фланец ГОСТ12821-80 1-1200-10 ст.3 (20)
1455
1380
39
1256
1228
1192
33
90
32
179,91

Проход условный Dy d1 b h4 Dm Dn Масса, кг
с соединительным выступом с выступом с впадиной с шипом с пазом
10 8 10 33 25 15 0,50 0,50 0,48 0,50 0,49
15 12 30 19 0,58 0,58 0,54 0,57 056
20 18 12 36 38 26 0,87 0,87 0,81 0,87 0,83
25 25 38 45 33 1,05 1,05 0,98 1,03 1,02
32 31 13 40 55 39 1,54 1,53 1,45 1,50 1,49
40 38 42 62 46 1,83 1,78 1,71 1,74 1,78
50 49 76 58 2,26 2,23 2,15 2,15 2,21
65 66 15 45 94 77 3,17 3,11 2,92 3,06 3,14
80 78 47 105 90 3,67 3,60 3,46 3,54 3,65
100 96 17 48 128 110 4,70 4,70 4,49 4,50 4,54
125 121 19 57 156 135 6,71 6,58 6,27 6,12 6,23
150 146 180 161 8,17 8,20 7,77 8,80 8,90
(175) 177 210 196 9,71 9,57 9,09 9,36 9,49
200 202 58 240 222 11,35 11,00 10,47 10,28 10,32
(225) 226 60 268 248 13,24 13,04 12,40 12,64 12,83
250 254 21 290 278 14,64 14,39 13,86 13,64 13,83
300 303 22 345 330 18,66 19,30 17,70 18,52 18,90
350 351 400 382 24,00 21,70 22,56 22,70 23,00
400 398 445 432 30,00 30,35 27,65 28,00 28,50
(450) 450 65 500 484 33,33 34,69 31,30 31,21 31,83
500 501 24 550 535 39,20 40,00 37,00 36,91 37,60
600 602 650 636 48,80 50,00 46,60 45,52 48,70
(700) 692 25 744 726 65,26 64,70 60,50 59,86 62,28
800 792 27 75 850 826 87,24 86,10 80,40 81,25 84,28
(900) 892 29 80 950 926 103,02 - - - -
1000 992 1050 1028 119,19
1200 1192 33 90 1256 1228 179,91
