HOME > PRODUCTS CENTER > GOST 12820-80 WELDING NECK FLANGE / ГОСТ 12821-80 WELDING NECK FLANGE
GOST 12821-80 WELD NECK FLANGE PN0.6MPA
Print The Page
ГОСТ 12821-80 ФЛАНЦЫ PN 0.6 MPA
WNRF, PN6
hyupshin ansi flanges

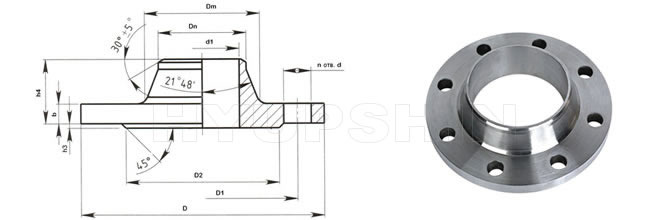

Flange Dimensions & Approximate Masses / Flange's Weight
Проход условный Dy d1 b h4 Dm Dn Масса, кг
с соединительным выступом с выступом с впадиной с шипом с пазом
10 8 10 27 22 15 0,34 0,34 0,32 0,34 0,33
15 12 28 28 19 0,40 0,40 0,38 0,40 0,40
20 18 30 36 26 0,53 0,53 0,50 0,53 0,52
25 25 12 42 33 0,76 0,77 0,72 0,75 0,75
32 31 33 50 39 1,10 1,08 1,04 1,08 1,08
40 38 35 60 46 1,36 1,37 1,28 1,30 1,34
50 49 70 58 1,53 1,51 1,44 1,46 1,47
65 66 88 77 1,97 2,06 1,83 1,72 1,75
80 78 13 37 102 90 2,76 2,76 2,80 2,65 2,72
100 96 38 122 110 3,35 3,04 3,03 3,03 3,04
125 121 15 40 148 135 4,66 4,24 3,66 4,50 4,55
150 146 43 172 161 5,37 5,85 4,93 5,29 5,35
(175) 177 17 47 210 196 7,32 8,10 6,92 7,11 7,16
200 202 50 235 222 8,37 9,35 7,75 7,98 8,05
(225) 226 260 248 9,45 9,25 8,72 8,98 9,06
250 254 18 288 278 10,99 10,69 10,14 12,20 12,30
300 303 340 330 14,82 14,28 14,10 13,81 14,11
350 351 390 382 17,69 18,65 17,64 16,35 16,72
400 398 440 432 20,55 19,69 19,30 18,83 19,31
(450) 450 494 484 23,63 23,60 21,90 21,62 22,24
500 501 19 545 535 26,63 29,10 25,90 24,44 25,10
600 602 55 650 636 35,79 35,60 33,40 37,49 33,67
(700) 692 740 726 44,31 44,10 41,10 40,60 41,86
800 792 60 844 826 56,17 55,20 52,20 51,67 53,36
(900) 892 21 944 926 66,79 - - - -
1000 992 1044 1028 73,51
1200 1192 23 70 1248 1228 111,43
1400 1392 27 85 1456 1428 156,58
1600 1592 32 95 1660 1628 218,57
Certificates
ISO9001-2015 TUV Rheinland for flanges manufacturing and sales
CE PED 2014/68/EU, AD2000 W0 W0, for quality assurance for flanges manufacturer of materials
CE PED 2014/68/EU, AD2000 W0 W9
ISO 9001 : 2015

Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: CT20, Q235, ASTM A105, A181, A350 LF1, A350LF2, A350LF3, A36, 20#, 16Mn, 20Mn etc.
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.

GOST 12821-80 FLANGE
