| ANSI, ASME, ASA, B16.5, BLANK FLANGE |
|
| CLASS 150 300 600 900 1500 2500 BLIND FLANGE |
|
| Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
|
|
|
|

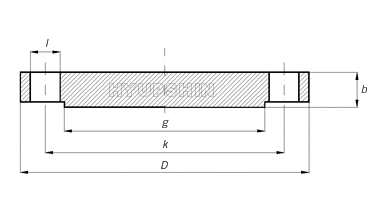

| Flange Dimensions & Approximate Masses / Flange Weight |
| Table ANSI, ASME, ASA, B16.5 150lb/sq.in. Blind Flange |
| ø |
D |
b |
g |
k |
Holes |
l |
Kg. |
| 1/2" |
88,9 |
11,1 |
34,9 |
60,3 |
4 |
15,9 |
0,400 |
| 3/4" |
98,4 |
12,7 |
42,9 |
69,8 |
4 |
15,9 |
0,700 |
| 1" |
107,9 |
14,3 |
50,8 |
79,4 |
4 |
15,9 |
0,900 |
| 1 1/4" |
117,5 |
15,9 |
63,5 |
88,9 |
4 |
15,9 |
1,300 |
| 1 1/2" |
127,0 |
17,5 |
73,0 |
98,4 |
4 |
15,9 |
1,600 |
| 2" |
152,4 |
19,0 |
92,1 |
120,6 |
4 |
19,0 |
2,600 |
| 2 1/2" |
177,8 |
22,2 |
104,8 |
139,4 |
4 |
19,0 |
4,100 |
| 3" |
190,5 |
23,8 |
127,0 |
152,4 |
4 |
19,0 |
5,000 |
| 3 1/2" |
215,9 |
23,8 |
139,7 |
177,8 |
8 |
19,0 |
6,400 |
| 4" |
228,6 |
23,8 |
157,2 |
190,5 |
8 |
19,0 |
7,100 |
| 5" |
254,0 |
23,8 |
185,7 |
215,9 |
8 |
22,2 |
9,000 |
| 6" |
279,4 |
25,4 |
215,9 |
241,3 |
8 |
22,2 |
11,800 |
| 8" |
342,9 |
28,6 |
269,9 |
298,4 |
8 |
22,2 |
21,000 |
| 10" |
406,4 |
30,2 |
323,4 |
361,9 |
12 |
25,4 |
30,000 |
| 12" |
482,6 |
31,7 |
381,0 |
431,8 |
12 |
25,4 |
45,000 |
| 14" |
533,4 |
34,9 |
412,7 |
476,2 |
12 |
28,6 |
59,000 |
| 16" |
596,9 |
36,5 |
469,9 |
539,9 |
16 |
28,6 |
79,000 |
| 18" |
635,0 |
39,7 |
533,4 |
577,8 |
16 |
31,7 |
97,000 |
| 20" |
698,5 |
42,9 |
584,2 |
635,0 |
20 |
31,7 |
124,000 |
| 22" |
749,3 |
46,0 |
641,2 |
692,1 |
20 |
34,9 |
151,000 |
| 24" |
812,8 |
47,6 |
692,1 |
749,3 |
20 |
34,9 |
188,000 |
NOTE:
1. Class 150 flanges except Lap Joint will be furnished with 0.06 (1.6mm) raised face, which is included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3).
2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees.
3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C).
5. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option. |
| Table ANSI, ASME, ASA, B16.5 300lb/sq.in. Blind Flange |
| ø |
D |
b |
g |
k |
Holes |
l |
Kg. |
| 1/2" |
95,2 |
14,3 |
34,9 |
66,7 |
4 |
15,9 |
0,700 |
| 3/4" |
117,5 |
15,9 |
42,9 |
82,5 |
4 |
19,0 |
1,200 |
| 1" |
123,8 |
17,5 |
50,8 |
88,9 |
4 |
19,0 |
1,500 |
| 1 1/4" |
133,3 |
19,0 |
63,5 |
98,4 |
4 |
19,0 |
2,000 |
| 1 1/2" |
155,6 |
20,6 |
73,0 |
114,3 |
4 |
22,2 |
2,900 |
| 2" |
165,1 |
22,2 |
92,1 |
127,0 |
8 |
19,0 |
3,400 |
| 2 1/2" |
190,5 |
25,4 |
104,8 |
149,2 |
8 |
22,2 |
5,100 |
| 3" |
209,5 |
28,6 |
127,0 |
168,3 |
8 |
22,2 |
7,000 |
| 3 1/2" |
228,6 |
30,2 |
139,7 |
184,1 |
8 |
22,2 |
8,900 |
| 4" |
254,0 |
31,7 |
157,2 |
200,0 |
8 |
22,2 |
11,800 |
| 5" |
279,4 |
34,9 |
185,7 |
234,9 |
8 |
22,2 |
15,500 |
| 6" |
317,5 |
36,5 |
215,9 |
269,9 |
12 |
22,2 |
21,300 |
| 8" |
381,0 |
41,3 |
269,9 |
330,2 |
12 |
25,4 |
35,200 |
| 10" |
444,5 |
47,6 |
323,8 |
387,3 |
16 |
28,6 |
57,000 |
| 12" |
520,7 |
50,8 |
381,0 |
450,8 |
16 |
31,7 |
82,000 |
| 14" |
584,2 |
54,0 |
412,7 |
514,3 |
20 |
31,7 |
106,000 |
| 16" |
647,7 |
57,1 |
469,9 |
571,5 |
20 |
34,9 |
140,000 |
| 18" |
711,2 |
60,3 |
533,4 |
628,6 |
24 |
34,9 |
178,000 |
| 20" |
774,7 |
63,5 |
584,2 |
685,8 |
24 |
34,9 |
223,000 |
| 22" |
838,2 |
66,7 |
641,2 |
742,9 |
24 |
41,3 |
270,000 |
| 24" |
914,4 |
69,8 |
692,1 |
812,8 |
24 |
41,3 |
345,000 |
NOTE:
1. Class 300 flanges except Lap Joint will be furnished with 0.06 (1.6mm) raised face, which is included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3).
2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees.
3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C).
5. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option. |
| Table ANSI, ASME, ASA, B16.5 600lb/sq.in. Blind Flange |
| ø |
D |
b |
g |
k |
Holes |
l |
Kg. |
| 1/2" |
95,2 |
14,3 |
34,9 |
66,7 |
4 |
15,9 |
0,700 |
| 3/4" |
117,5 |
15,9 |
42,9 |
82,5 |
4 |
19,0 |
1,200 |
| 1" |
123,8 |
17,5 |
50,8 |
88,9 |
4 |
19,0 |
1,500 |
| 1 1/4" |
133,3 |
20,6 |
63,5 |
98,4 |
4 |
19,0 |
2,000 |
| 1 1/2" |
155,6 |
22,2 |
73,0 |
114,3 |
4 |
22,2 |
3,200 |
| 2" |
165,1 |
25,4 |
92,1 |
127,0 |
8 |
19,0 |
4,300 |
| 2 1/2" |
190,5 |
28,6 |
104,8 |
149,2 |
8 |
22,2 |
6,000 |
| 3" |
209,5 |
31,7 |
127,0 |
168,3 |
8 |
22,2 |
8,000 |
| 3 1/2" |
228,6 |
34,9 |
139,7 |
184,1 |
8 |
25,4 |
10,500 |
| 4" |
273,0 |
38,1 |
157,2 |
215,9 |
8 |
25,4 |
18,000 |
| 5" |
330,2 |
44,4 |
185,7 |
266,7 |
8 |
28,6 |
28,500 |
| 6" |
355,6 |
47,6 |
215,9 |
292,1 |
12 |
28,6 |
35,500 |
| 8" |
419,1 |
55,6 |
269,9 |
349,2 |
12 |
31,7 |
58,000 |
| 10" |
508,0 |
63,5 |
323,8 |
431,8 |
16 |
34,9 |
98,000 |
| 12" |
558,8 |
66,7 |
381,0 |
488,9 |
20 |
34,9 |
125,000 |
| 14" |
603,2 |
69,8 |
412,7 |
527,0 |
20 |
38,1 |
151,000 |
| 16" |
685,8 |
76,2 |
469,9 |
603,2 |
20 |
41,3 |
215,000 |
| 18" |
742,9 |
82,5 |
533,4 |
654,0 |
20 |
44,4 |
287,000 |
| 20" |
812,8 |
88,9 |
584,2 |
723,9 |
24 |
44,4 |
366,000 |
| 22" |
869,9 |
95,2 |
641,2 |
777,9 |
24 |
47,6 |
437,000 |
| 24" |
939,8 |
101,6 |
692,1 |
838,2 |
24 |
50,8 |
532,000 |
NOTE:
1. Class 600 flanges except Lap Joint will be furnished with 0.25 (6.35mm) raised face, which is not included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3).
2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees.
3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C).
5. Dimensions of sizes 1/2 through 3 1/2 are the same as for Class 400 Flanges.
6. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option. |
|
| Production Capacity & Purchase Details |
|
|
| 1. |
Supply Flange Dimension DN15 - DN600 (1/2" - 24") for Blank Flange, Forged Flange. |
| 2. |
Flange Material Carbon Steel: ASTM A105, A181, A350 LF1, A350LF2, A350LF3, A36, A234 WPB, Q235B, 20#, 20Mn. |
| 3. |
Flange Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc. |
| 4. |
Flange Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc. |
| 5. |
Flange Monthly Output: 3000 tons per Month. |
| 6. |
Flange Delivery Terms: CIF, CFR, FOB, EXW, transport by sea, by air, by express DHL, FedEx, TNT, EMS. |
| 7. |
Flange Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc. |
| 8. |
Flange Minimum Order Quantity (MOQ): 1Ton or 100Pcs per size. |
| 9. |
Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service. |
