HOME > PRODUCTS CENTER > DIN 2543 PN16 PLATE FLANGE
DIN 2543 PN16 PLATE FLANGE
Print The Page
PN16 FLANGE, SLIP ON PLATE, PLAIN, FLAT
RAISED FACE (RF), FLAT FACE (FF)
Shandong Hyupshin Flanges Co., Ltd, Flanges Manufacturer, Exporter, DIN2543 PN16 flanges
Shandong Hyupshin Flanges Co., Ltd, Flanges Manufacturer, Exporter, DIN2543 PN16 Flanges

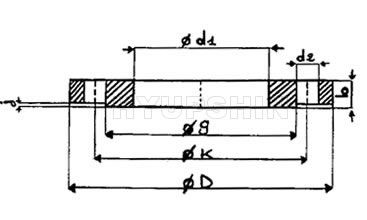

Flange Dimensions & Approximate Masses
Germany standard flange DIN 2543 for soldering or welding Nominal Pressure 16
Flansche, glatt zum löten oder schweißen DIN 2543 Nenndruck 16
Brides plates a souder DIN 2543 pression nominale 16
Bore Common Dimension Raised Face Drilling Approx.
Weight (Kg)
Nominal Bore d1 D t K d4 f Number of Bolts x d2 DIN 2543
10
14
 90 14 60 40 2 4 M12 (1/2") 14 0.63
17.2*
15
20
 95 14 65 45 2 4 M12 (1/2") 14 0.72
21.3*
20
25
 105 16 75 58 2 4 M12 (1/2") 14 1.01
26.9*
25
30
 115 16 85 68 2 4 M12 (1/2") 14 1.23
33.7*
32
38
 140 16 100 78 2 4 M16 (5/8") 18 1.80
42.4*
40
44.5
 150 16 110 88 3 4 M16 (5/8") 18 2.09
48.3*
50
57
 165 18 125 102 3 4 M16 (5/8") 18 2.88
60.3*
65
76.1*
 185 18 145 122 3 4 M16 (5/8") 18 3.66
80
88.9
 200 20 160 138 3 8 M16 (5/8") 18 4.77
100
108
 220 20 180 158 3 8 M16 (5/8") 18 5.65
114.3*
125
133
 250 22 210 188 3 8 M16 (5/8") 18 8.42
139.7*
150
159
 285 22 240 212 3 8 M20 (3/4") 23 10.4
168.3*
200
216
 340 24 295 268 3 12 M20 (3/4") 23 16.1
219.1*
250
267
 405 26 355 320 3 12 M24 (7/8") 27 24.9
273*
300
318
 460 28 410 378 4 12 M24 (7/8") 27 35.1
323.9*
350
355.6*
 520 30 470 438 4 16 M24 (7/8") 27 47.8
368
400
406.4*
 580 32 525 490 4 16 M27 (1") 30 63.5
419
500
508*
 715 36 650 610 4 20 M30 (1-1/8") 33 102.0
521
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
Certificates
ISO9001-2015 TUV Rheinland for flanges manufacturing and sales
CE PED 2014/68/EU, AD2000 W0 W0, for quality assurance for flanges manufacturer of materials
CE PED 2014/68/EU, AD2000 W0 W9
ISO 9001 : 2015
Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.
