HOME > PRODUCTS CENTER > KOREA ANSI B16.5 CL 150-300 FLANGE
ANSI B16.5 FLANGE CLASS 150 / 300
Print The Page
WELDING NECK FLANGE 150LBS 300LBS
SLIP ON FLANGE, LAP JOINT FLANGE, SOCKET WELD FLANGE, 150LBS 300LBS
BLIND FLANGE, BLANK FLANGE, 150LBS 300LBS
THREADED FLANGE 150LBS 300LBS
RAISED FACE (RF), FLAT FACE (FF), RING TYPE JOINT (RTJ)

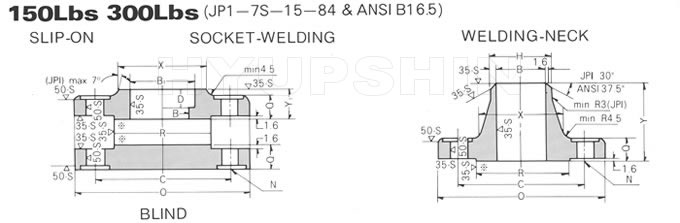

KOREAN ANSI B16.5 CLASS 150-300 FLANGE DRAWINGS, SHANDONG HYUPSHIN FLANGES CO., LTD

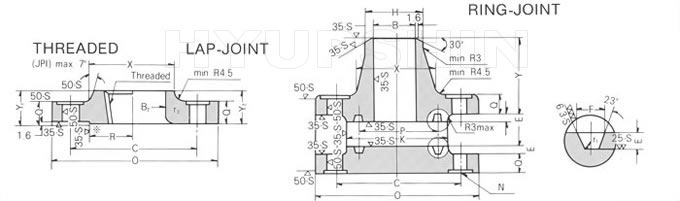

KOREAN ANSI B16.5 CLASS 150-300 FLANGE DRAWINGS, SHANDONG HYUPSHIN FLANGES CO., LTD
Flange Dimensions & Approximate Masses / Flange's Weight

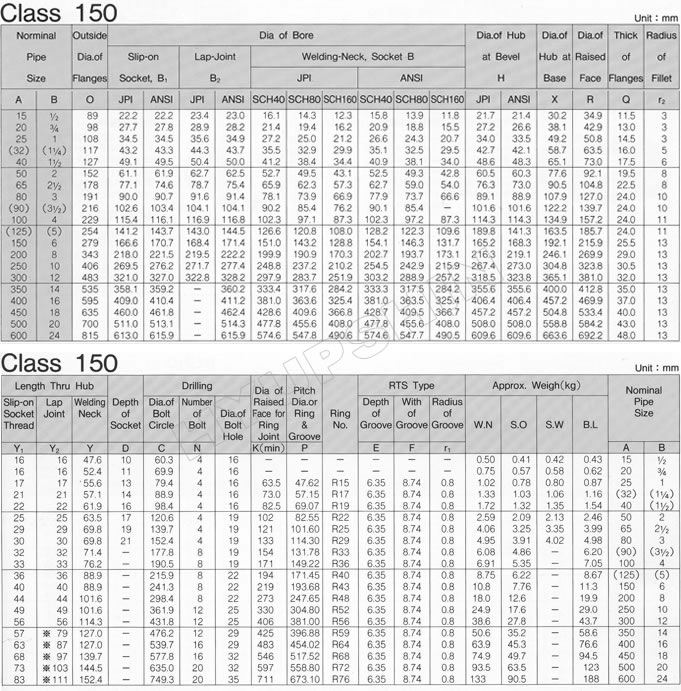

KOREAN ANSI B16.5 CLASS 150 FLANGE SPECIFICATION, SHANDONG HYUPSHIN FLANGES CO., LTD

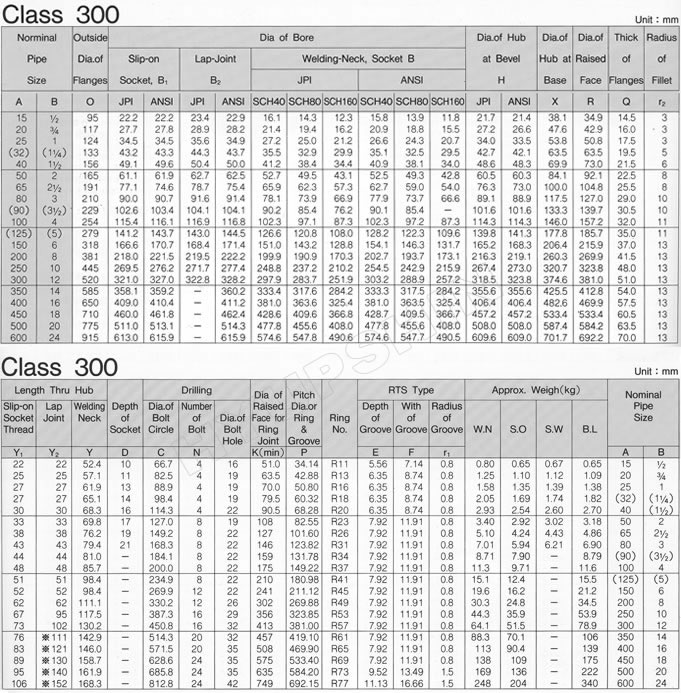

KOREAN ANSI B16.5 CLASS 300 FLANGE SPECIFICATIONS, SHANDONG HYUPSHIN FLANGES CO., LTD
Certificates
Korea KS Certificate for KS B1503 5K 10K 16K 20K Flanges
CE PED 2014/68/EU, AD2000 W0 W0, for quality assurance for flanges manufacturer of materials
KOREA KS CERTIFICATE
ISO 9001 : 2015
CE PED 2014/68/EU, AD2000 W0 W9

Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: ASTM A105, A181, A350 LF1, A350LF2, A350LF3, A36, A234 WPB, Q235B, 20#, 20Mn etc.
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.
