HOME > PRODUCTS CENTER > KOREA DIN 40 BAR FLANGE
DIN 2545 40 BAR SLIP ON PLATE FLANGE PN40
Print The Page
DIN 2527 40 BAR BLIND FLANGE PN40
DIN 2635 40 BAR WELD NECK FLANGE PN40
FLAT FACE (FF), RAISED FACE (RF)

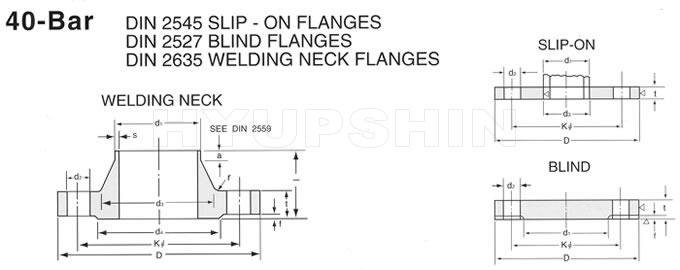

DIN 40BAR FLANGE DRAWINGS, SHANDONG HYUPSHIN FLANGES CO., LTD
Flange Dimensions & Approximate Masses / Flange's Weight

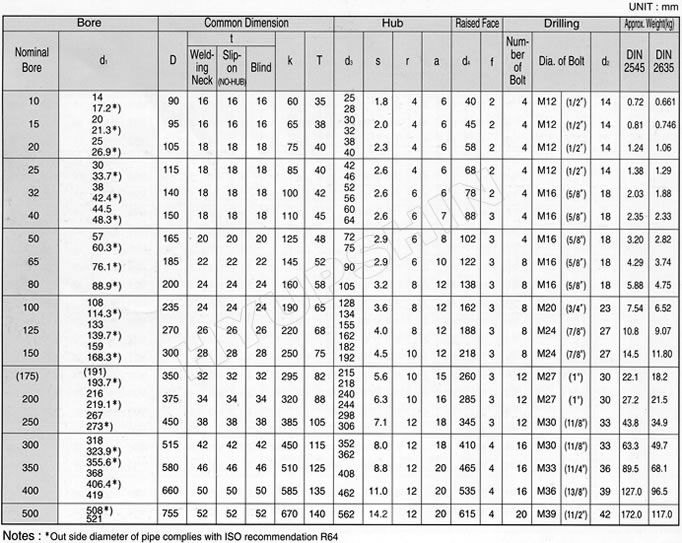

DIN 40BAR FLANGE SPECIFICATIONS, SHANDONG HYUPSHIN FLANGES CO., LTD
Certificates
Korea KS Certificate for KS B1503 5K 10K 16K 20K Flanges
CE PED 2014/68/EU, AD2000 W0 W0, for quality assurance for flanges manufacturer of materials
KOREA KS CERTIFICATE
ISO 9001 : 2015
CE PED 2014/68/EU, AD2000 W0 W9

Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: ASTM A105, SS400, SF440A, S235JR, C22.8, RST37.2, ST37, Q235
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.


DIN 40 BAR FLANGES
