HOME > PRODUCTS CENTER > KS D3578 FLANGE
KOREA KS D 3578 FLANGE
Print The Page

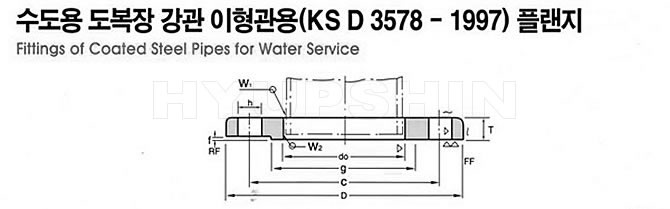

KS D3578 FLANGE DRAWINGS, SHANDONG HYUPSHIN FLANGES CO., LTD

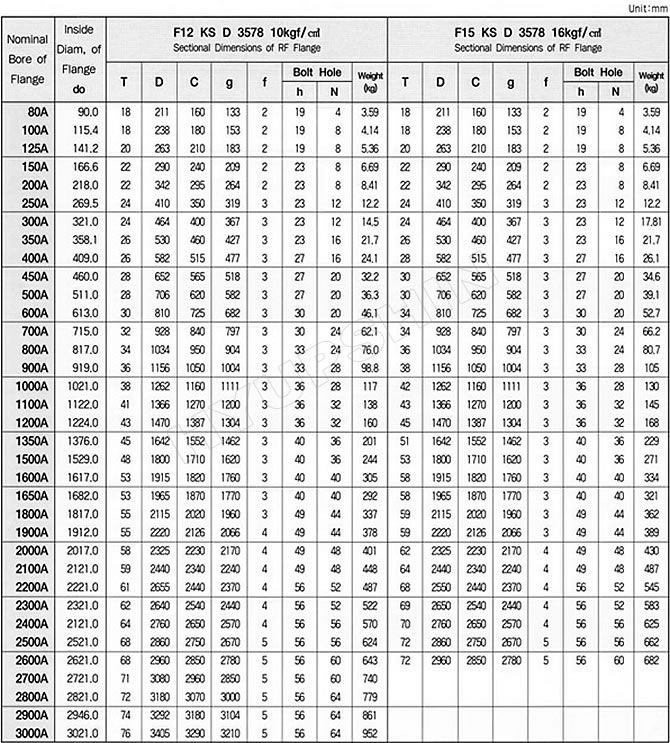

Flange Dimensions & Approximate Masses / Flange's Weight
KS D3578 FLANGE SPECIFICATIONS, SHANDONG HYUPSHIN FLANGES CO., LTD
Certificates
Korea KS Certificate for KS B1503 5K 10K 16K 20K Flanges
CE PED 2014/68/EU, AD2000 W0 W0, for quality assurance for flanges manufacturer of materials
KOREA KS CERTIFICATE
ISO 9001 : 2015
CE PED 2014/68/EU, AD2000 W0 W9

Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: SS400,SF440A, SS41, Q235, 16Mn, 20Mn, ASTM A105
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.


KS D 3578 FLANGES
Shandong Hyupshin Flanges Co., Ltd, JIS flanges, KS flanges, SS400, SF390A, SF440A
