HOME > MANUFACTURE & INSPECTION > TECHNOLOGY OF PIPE FITTINGS
PIPE FITTINGS PRODUCTION

Shandong Hyupshin Flanges Co., Ltd, Pipe Fittings

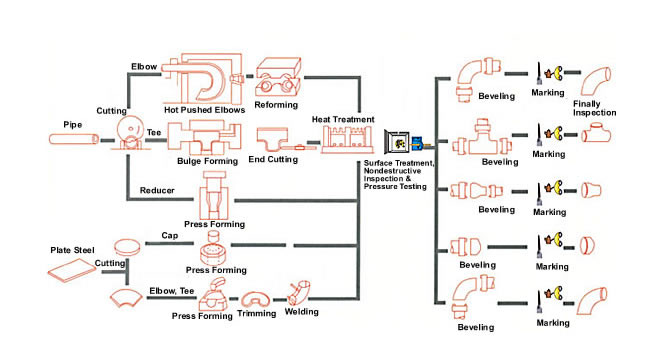

The Production Flow Chart of Pipe Fittings
PIPE FITTING RAW MATERIAL SPECIFICATIONS
                    /      Products
Material
ELBOWS, TEES, CROSS, REDUCERS, CAPS, BENDS etc.
Carbon Steel
ASTM
 ASTM A234 WPB WPC A105 A106 A53 A283-D  API5LB  A671-CC-70  A515-50  A135-A  A179-C   A214-C A192  A226  A315-B   A178-C  A210-A
DIN
 ST33  ST37  ST37-2   ST35.8   ST42  ST42-2  ST45-8  ST45-4
JIS
 STPY41  STPC38  STB30  STB33  STB35  STPT42  STS40  SS400
Low Temperature Carbon Steel
ASTM
 A420 WPL6  A350LF2  A333Gr6  A671-CC-60  A516-60  A333-3.4  A334-3.4  A333-8  A334-8      A210-C  A333-1.6  A333-7.9  A334-1.6  A334-7.9
DIN
 St52.4   St52   TTSt35N  10Ni14  X8Ni9
JIS
 STS49    STPT49   STBL39   STPL46
Pipeline Steel

MSS SP75
WPYH42
A694
F42
API5L
X42
API5L（DSW）
X42
WPYH46
F46
X46
X46
WPYH52
F52
X52
X52
WPYH56
F56
X56
X56
WPYH60
F60
X60
X60
WPYH65
F65
X65
X65
WPYH70
F70
X70
X70
Alloy Steel
ASTM
 A369-FP1  A369-FP2  A250-T1 A209-T1 A213-T2  A213-T9  A213-T12  A199-T11  A199-T22   A335-P1  A335-P2  A335-P5  A335-P11   A335-P12   A335-P22    A335-P91   A335-P92
DIN
 15Mo3  13CrMo44  10CrMo910  12CrMo195
JIS
 STPA12  STPA22  STPA23  STPA24   STPA25  STPA26   STBA12  STBA13  STBA20  STBA22    STBA23  STBA24  STBA25  STBA26
Stainless Steel
ASTM
 A553-Gr.Ⅰ.Ⅱ  A353  A320-405  A320-410S  A320-403  A320-430  A320-304  A320-302  A320-321   A320-316   A320-317   A320-304L  A320-316L  A320-317L A320-347 A320-310
DIN
 X8Ni9  X7Cr13  X10Cr13  X8Cr17  X5CrNi189  X10CrNiTi189  X2CrNi189  X2CrNiMo1810  X10CrNiNb189
JIS
 SUS405   SUS410S  SUS403   SUS410   SUS430   SUS304   SUS302   SUS321   SUS316   SUS317 SUS304L   SUS316L   SUS317L   SUS347   SUS310
