| UNI 2254 PN16 THREADED FLANGE |
|
| PN16 SCREWED FLANGES |
|
| RAISED FACE (RF) |
|
|
 |
|
| Flange Dimensions & Approximate Masses / Flange's Weight |

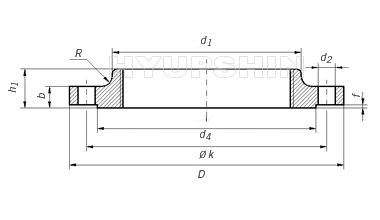

| ITALY STANDARD UNI 2254 PN16 THREADED FLANGE DIMENSIONS TABLE |
Rated
Diameter |
d1 |
Flange |
Neck |
Raised face |
Screws |
Weight
(7,85 Kg/dm3) |
| Thread |
D |
b |
k |
h1 |
d3 |
d4 |
f |
Number |
Thread |
d2 |
Kg |
| 15 |
21,3 |
R 1/2 |
95 |
14 |
65 |
20 |
35 |
45 |
2 |
4 |
M 12 |
14 |
0,613 |
| 20 |
26,9 |
R 3/4 |
105 |
16 |
75 |
24 |
45 |
58 |
2 |
4 |
M 12 |
14 |
0,91 |
| 25 |
33,7 |
R 1 |
115 |
16 |
85 |
24 |
52 |
68 |
2 |
4 |
M 12 |
14 |
1,1 |
| 32 |
42,4 |
R 1 1/4 |
140 |
16 |
100 |
26 |
60 |
78 |
2 |
4 |
M 16 |
18 |
1,6 |
| 40 |
48,3 |
R 1 1/2 |
150 |
16 |
110 |
26 |
70 |
88 |
3 |
4 |
M 16 |
18 |
1,78 |
| 50 |
60,3 |
R 2 |
165 |
18 |
125 |
28 |
85 |
102 |
3 |
4 |
M 16 |
18 |
2,43 |
| 65 |
76,1 |
R 2 1/2 |
185 |
18 |
145 |
32 |
105 |
122 |
3 |
4 |
M 16 |
18 |
3,18 |
| 80 |
88,9 |
R 3 |
200 |
20 |
160 |
34 |
118 |
138 |
3 |
8 |
M 16 |
18 |
4,12 |
| 100 |
114,3 |
R 4 |
220 |
20 |
180 |
38 |
140 |
158 |
3 |
8 |
M 16 |
18 |
4,47 |
| 125 |
139,7 |
R 5 |
250 |
22 |
210 |
40 |
168 |
188 |
3 |
8 |
M 16 |
18 |
6,13 |
| 150 |
165,1 |
R 6 |
285 |
22 |
240 |
44 |
195 |
212 |
3 |
8 |
M 20 |
22 |
7,92 |
|
|
|
|
CE PED 2014/68/EU, AD2000 W0 W9 |
ISO 9001 : 2015 |
|
|
| Production Capacity & Purchase Details |
|
|
| 1. |
Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange. |
| 2. |
Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, C21, P235GH, P245GH, P250GH, ASTM A105 |
| 3. |
Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc. |
| 4. |
Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc. |
| 5. |
Monthly Output: 3000 tons per Month. |
| 6. |
Delivery Terms: CIF, CFR, FOB, EXW. |
| 7. |
Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc. |
| 8. |
Minimum Order Quantity: 1Ton or 100Pcs. |
| 9. |
Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service. |
